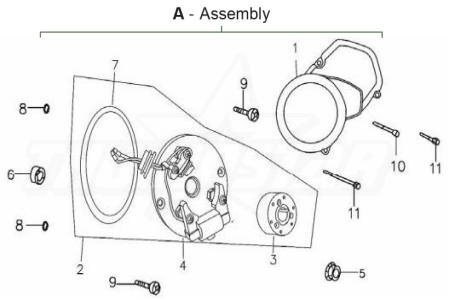

TSR 140: E-8 LEFT CRANKCASE COVER AND MAGNETTO
| No. | Part # | Description | ERP Code | Qty in Diagram | Buy |
|---|---|---|---|---|---|
| 1 | P040113 | LEFT CRANKCASE COVER | A019A070 | 1 | N/A |
| 2 | P040114 | MAGNETON | 208D050 | 1 | N/A |
| 3 | P040115 | FLYWHEEL | 208D060 | 1 | N/A |
| 4 | P040116 | STATOR MODULE | 208D070 | 1 | N/A |
| 5 | P040117 | HEX NUT | 7710000BCR | 1 | N/A |
| 6 | P040118 | OIL SEAL | D00C028 | 1 | N/A |
| 7 | P040119 | O-SHAPED SEAL | D001C062 | 1 | N/A |
| 8 | P040120 | O-SHAPED SEALS | F002C048 | 2 | N/A |
| 9 | P040121 | BOLT | GB819 | 2 | N/A |
| 10 | P040122 | BOLT | GB5787 | 1 | N/A |
| 11 | P040123 | BOLT | GB5787 | 2 | N/A |
Note: “Qty in Diagram” shows how many of this item are used in the assembly shown.
